JACK PANELS
EZ NORM PATCHBAY SERIES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
EZ NORM PATCHBAY SERIES
Center Strip Removes For
Normalling Access
Easily Normal The
Jacks By Rotating To
“Full”, “Non”, Or “Half ”
Positions

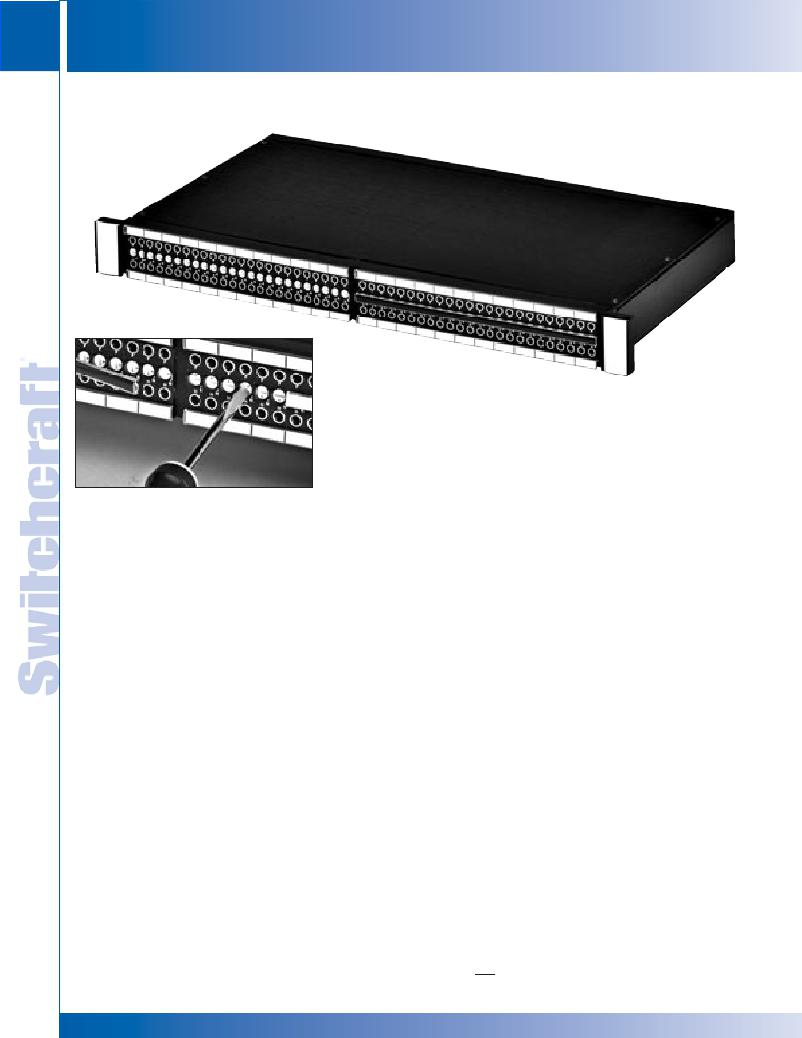

The EZ Norm offers a simplified method for setting up and
changing normals to a Bantam/TT patchbay. Simply remove
the middle designation strip, and rotate the center cam, using
a standard screwdriver. An audible”click” can be heard as
you rotate from full normals to no normals to half normals.
An opaque marking strip is included to conceal the normal
position, if needed.
EZ NORM JACK SPECIFICATIONS
MATERIALS:
Housing & Cover: 94V-0 rated thermoplastic
Sleeve Collar: Nickel plated copper alloy
Tip, Ring, Shunt, & Sleeve Springs: Nickel Silver with
welded contacts
Welded Contacts: Gold
Cam Switching Springs: Silver plated copper alloy
Cam Switching Contacts: Silver plated copper alloy
MECHANICAL
Jack Mechanical Life: 30,000 cycles
Cam Contact Mechanical Life: 30,000 cycles
Insertion - Withdrawal Forces: 1 - 4 lbs.
Moisture resistance: MIL-STD 202 Method 106
Thermal shock: MIL-STD 202 Method 107
Salt spray: MIL-STD Method 101 (48 hrs.)
Vibration: MIL-STD 202 Method 213
ELECTRICAL:
Jack Spring Contact Resistance: 30 milliohm Maximum
Cam Switch Contact Resistance: 30 milliohm Maximum
Insulation Resistance: 10,000 Megaohms
Dielectric Withstanding Voltage:
500 VAC (rms) at 60 Hz
Insertion Loss: -0.5dB up to 10 MHz
EZ NORM PATCHBAY OPTIONS
? 1RU can be terminated to EDAC or Cannon DL,
solder terminals, or wire-wrap terminals
? 1.5RU can be terminated to EDAC/Cannon DL, solder
terminals, wire-wrap terminals, plus 3 pin connectors,
or our own PPT Professional Punchdown Terminal
? 2RU Same as above
? All units will be offered with or w/o docking connector
? Unwired units will be offered with either cable tie bar
or cable tray
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
